Per-project build configuration

This page lists every setting in the build menu, which holds one LaTeX project’s own engine, recipe, and compile options. For the compile loop, error reporting, and jumps between source and PDF, see Compiling LaTeX and reading errors. Each setting falls back to a global default until the project overrides it.

Setting	Default	What it does
Engine	The global Default engine setting	Selects the engine this project compiles with.
Recipe	Latexmk (auto)	Sets which programs run, and in what order.
Shell-escape	Off	Lets the document run external programs during a compile.
SyncTeX	On	Generates the sync data forward and inverse search need.
Stop on first error	The global setting, which ships on	Halts the compile at the first error.
Auto-compile on save	The global setting, which ships off	Recompiles the project after every save.

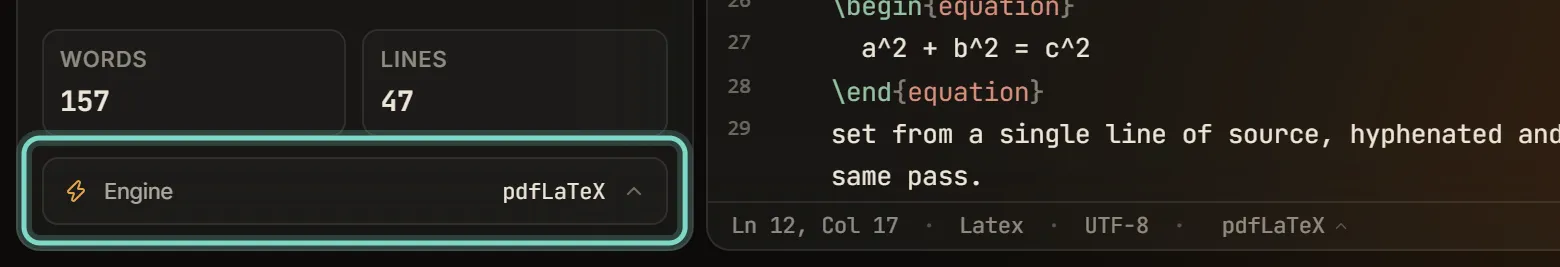

The Engine pill in the sidebar opens the build menu, and so does the engine name in the status bar.

Screenshot of the sidebar Engine pill and the matching status bar engine name, the two controls that open the build menu.

Engine

The build menu picks a concrete engine for one project. The global Default engine setting chooses only between System TeX and Tectonic. See Choosing a compile engine.

Engine	What it does
pdfLaTeX	What a project without an override compiles with when the global setting is System TeX.
XeLaTeX	Handles documents that use system fonts through `fontspec`. Selectable here, never in Settings.
LuaLaTeX	The Lua-extended engine, also `fontspec`-capable. Selectable here, never in Settings.
Tectonic	The bundled, self-contained engine. It needs no TeX distribution and downloads packages on demand.

With the default recipe, the three System TeX engines run through latexmk from your TeX distribution, with -pdf, -xelatex, or -lualatex. If latexmk is missing or fails, Typeward calls the engine binary (pdflatex, xelatex, or lualatex) directly and marks the switch in the log.

The engine also decides whether chapter drafts are available. Draft this chapter needs one of the System TeX engines. With Tectonic selected it refuses with chapter drafts need a latexmk/pdflatex engine (Tectonic has no \includeonly fast path). See Chapter drafts.

Recipe

For the System TeX engines, the recipe decides which programs run, and in what order.

Recipe	What runs
Latexmk (auto)	The default. `latexmk` handles bibliography and rerun passes automatically.
Engine only (×2)	Two engine passes, no bibliography.
Engine + BibTeX	Engine, `bibtex`, then two more engine passes, for classic `.bib` workflows.
Engine + Biber	Engine, `biber`, then two more engine passes, for `biblatex` documents.

The three recipes whose names start with Engine bypass latexmk entirely, which helps on MiKTeX installs where the Perl dependency of latexmk is broken. If bibtex or biber is missing from PATH, the compile still finishes, and the log records that citations were left unresolved.

Tectonic runs its own bibliography passes, so the menu replaces this section with a line saying the recipe is ignored.

Shell-escape

Shell-escape is off until you turn it on. It lets the document run external programs during a compile, which packages such as minted need. That same power lets a document run any program at all, so Typeward gates it twice:

The Shell-escape toggle in the build menu carries the hint Lets the document run programs (needs approval).
Turning that toggle on raises a native confirmation dialog, which grants or refuses shell-escape for this project on this machine.

Typeward stores the answer in its app data on that machine, never in the project folder, so a project you cloned or downloaded cannot arrive with the permission already granted. See Data locations.

Decline the dialog and compiles run without the flag. A stored refusal shows as Blocked on this machine. Re-approve… in the menu, and selecting it clears the block and asks again.

With Tectonic, the same grant is what switches the engine out of its hardened mode. Without the grant Tectonic compiles with --untrusted; with it Typeward passes -Z shell-escape instead.

SyncTeX

SyncTeX is on by default and carries the hint Forward/inverse search between source and PDF. It generates the sync data that forward and inverse search need. With it off, jumping between source and PDF stops working.

Stop on first error

Stop on first error follows the global setting, which ships on, so the compile halts at the first error. Turned off, LaTeX pushes past errors and collects every diagnostic in one pass, usually producing a best-effort PDF. Tectonic always halts at the first error, whatever this switch says.

Auto-compile on save

Auto-compile on save follows the global setting, which ships off. On, every save recompiles the project. Autosave rides the same save path, so an autosave also recompiles.

Clean auxiliary files

Clean auxiliary files in the menu’s footer deletes the regenerable artifacts and keeps the PDF. It removes the main file’s whole set at both locations a PDF can land in, plus every .aux in the project tree. A multi-file document leaves one .aux per included chapter. The report is either Nothing to remove. The build directory was already clean. or the number of files removed.

The classic case is a build wedged by a stale .aux file, usually after a change to the bibliography setup. Every compile then fails at \begin{document} no matter what you edit. The log parser recognizes that state and raises a warning that reads Use Engine → Clean auxiliary files, then compile again.

Main file

Project settings… in the menu’s footer opens the project settings dialog. Its Main file section lists the project’s .tex files, described as The entry file the compiler builds. The selected file is the compile root. In a multi-file project, where chapters arrive through \input or \include, the main file is the file that contains \begin{document}.

PDF output location

Typeward compiles in place, exactly as running the tools yourself would, and creates no separate build directory. The two engine families disagree on where the PDF goes.

System TeX engines (latexmk, pdflatex, xelatex, lualatex) run with the project root as their working directory and pass no output-directory flag. The PDF is <main file stem>.pdf in the project root, so a main file at chapters/thesis.tex produces thesis.pdf at the top of the project, not chapters/thesis.pdf.
Tectonic writes beside its input, so chapters/thesis.tex produces chapters/thesis.pdf.

The two locations coincide only when the main file sits at the top level, which is the common case. Auxiliary files (.aux, .log, .bbl, .synctex.gz, and the rest) follow the same rule as the PDF for whichever engine produced them.

Strictly offline Tectonic builds

Tectonic reaches the network for packages it has not cached yet. For a build that can never do that, Typeward reads a compile.strictOffline key from its settings.json, which adds Tectonic’s --only-cached flag.

{
  "compile": {
    "strictOffline": true
  }
}

Settings has no control for this key, so it takes a hand edit of settings.json. See Data locations. Typeward preserves the key when it saves anything else from Settings, and reads the value at the start of each compile.

The key ships off because --only-cached turns a first compile into a failure rather than a download while the cache is cold. A normal online build warms the cache. The key has no effect on the System TeX engines, which never fetch anything.

How these values are stored

Typeward stores every value in the build menu per project, inside the project’s .typeward folder, in project.json under build. A value set here wins over the matching global default under Settings → Editor → Compilation, and an unset value follows that default. Reset to global defaults at the bottom of the menu clears every override at once, which returns the project to the global settings.
